Dump Bodies

Air-Flo Pro-Class Dump Bodies

Air-Flo Pro-Class Dump Bodies

The Pro-Class Series Body combines great looks with rugged durability. The body features dual side wall construction with a full welded boxed top rail for exceptional strength. The smooth clean lines of the Pro-Class will match perfectly with any modern chassis and will give you years of dependable service. Demand the best...Demand the Pro-Class Body...Only from Air-Flo.

  • Horizontal lines and gussets have smooth rounded corners for a classy modern appearance
  • Double wall sides form a fully boxed top rail and include 45 degree sloped, dirt shedding subrails
  • The 94 inch wide body is fully welded and made of 10 ga. steel throughout for unsurpassed strength and durability
  • Exclusive Quick-Latch tailgate latching system makes tailgate operations simple and easy
  • The body under structure is built with 3 inch structural steel channels spaced every 12 inches and supported by 5 inch structural channel longitudinals
  • High lift capacity scissor hoist with factory installed body prop is standard equipment

Air-Flo Pro-Class Stainless Dump Bodies

Air-Flo Pro-Class Stainless Dump Bodies

The Pro-Class Series Body combines great looks with rugged durability. The body features dual side wall construction with a full welded boxed top rail for exceptional strength. The smooth clean lines of the Pro-Class will match perfectly with any modern chassis and will give you years of dependable service. Demand the best...Demand the Pro-Class Body...Only from Air-Flo.

  • Horizontal lines and gussets have smooth rounded corners for a classy modern appearance
  • Double wall sides form a fully boxed top rail and include 45บ sloped, dirt shedding subrails
  • The 94” wide body is fully welded and made polished stainless steel for unsurpassed strength and durability
  • Exclusive Quick-Latchฎ tailgate latching system makes tailgate operations simple and easy
  • The under structure is built with 1/4" thick trapezoidal longitudinals that span the entire length of the body. The floor is designed and constructed so that it will not have any underbody cross member bracing.
  • High lift capacity scissor hoist with factory installed body prop is standard equipment

Bibeau - BBFL steel dump bodies

Bibeau - BBFL steel dump bodies

Manufactured in the Bibeau tradition of maximum strength at a minimum weight. The BBFL is built with steel ranging from 250 to 500 Brinell hardness, giving it the durability to hold up to your roughest jobs and the weight savings for increased payload. The AR steel and unibody design provide remarkable resistance to impact and wear.

  • Standard lengths 9'0" to 13"0"
  • Side heights: 24" to 36"
  • Tailgate height: 30" to 48"
  • Construction:
  • Sides: 1/8" AR500
  • Floor & Gate: 3/16" AR450
  • Long sills: 3/16" AR250

Bibeau - BBMT steel dump bodies

Bibeau - BBMT steel dump bodies

By far the most rugged of its category. With full AR450 body shell, it is unquestionably the best suited to sustain constant abuse (heavy duty excavation and demolition). Furthermore, the AR steel provides this body with an incomparable wear resistant factor as well as the ultimate resistance to impacts

  • Standard lengths 9'0" to 13"0"
  • Side heights: 24" to 36"
  • Tailgate height: 30" to 48"
  • Construction:
  • Sides: 3/16" AR450
  • Floor & Gate: 1/4" AR450
  • Long sills: 1/4"

Bibeau - BMS and BMT Stainless steel dump bodies

Bibeau - BMS and BMT Stainless steel dump bodies

Bibeau Stainless bodies available for 8' to 17'6"

  • Cross member-less design.
  • Floor offered as Stainless or HARDOX steel plate.
  • Double pleated reinforced bulkhead.
  • Various cab guard lengths.
  • Heavy duty tailgate with heavy duty hardware.
  • High lift and Barndoor gates available.
  • Most steel options are available on the stainless bodies

Bibeau - BMT steel dump bodies

Bibeau - BMT steel dump bodies

The BMT is without a doubt innovative and adapted to exceed the industries standards. Built with the highest steel quality steel combined with the finest engineering.

  • Standard lengths 13'0" to 21"6"
  • Side heights: 36" to 60"
  • Tailgate height: 42" to 66"
  • Capacity: 8 to 30 cubic yards
  • Construction:
  • Sides: 3/16" AR450
  • Floor & Gate: 1/4" AR450

Bibeau - MS HD steel dump bodies

Bibeau - MS HD steel dump bodies

The MS HD is designed for light to medium duty applications (sand, gravel and light excavation). This is the body of choice when weight is critical. The design ensures minimal weight while providing sufficient ruggedness to sustain the work load.

  • Available in length from 9'0" to 13'0"
  • Cross member-less design.
  • Side heights: 18" to 30".
  • Tailgate heights: 24" to 48".
  • Smooth sides are standard.
  • Various cab guard lengths.
  • Heavy duty tailgate with heavy duty hardware.
  • Construction:
  • Sides: 1/8" AR500
  • Floor & Gate: 3/16" AR250
  • Long sills: 3/16"
  • All steel body options are available.

Bibeau - MS steel dump bodies

Bibeau - MS steel dump bodies

MS dump bodies - If price is your main focus, the MS (Medium duty) can get it done for less. Constructed of 44W with an AR200 center floor section, the MS body is up to the task.

  • Available in length from 9'0" to 13'0"
  • Side heights: 24" to 36"
  • Tailgate heights: 30" to 48"
  • Cross member-less design.
  • Full 3/16" construction.
  • Pleated sides standard (picture shown with optional vertical bracing).
  • Various cab guard lengths.
  • Heavy duty tailgate with heavy duty hardware.
  • All steel options are available.

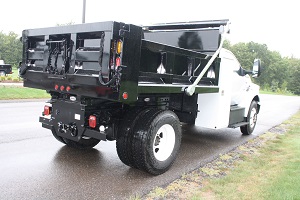

Easterner 10’ Steel Dump Body (5-7 Yard)

Easterner 10’ Steel Dump Body (5-7 Yard)

This body is designed for a 26,000 lb GVW chassis with an 84" CA.

  • 19" side height.
  • 24" tailgate height.
  • 96" body width.
  • 10-gauge steel sides with fully boxed dirt-shedding top rail.
  • Sides include three vertcial braces with radius corner bends.
  • 10-gauge steel floor.
  • 10-gauge steel front panel/fully boxed top rail.
  • 10-gauge fully boxed perimeter tailgate - 6-panel design.
  • 4" structural steel crossmembers on 12" centers.
  • 7" structural longitudinals.
  • Recessed stop/tail/turn lights in rear posts.
  • All appearance corners have radius bends.
  • 1/2 cab protector is standard.
  • Standard board gussets [fits 1 board per side].

Easterner 10’ Steel Dump Body (6-8 Yard)

Easterner 10’ Steel Dump Body (6-8 Yard)

This body is designed for medium duty chassis with an 84" cab-to-axle dimension.

  • 30" side height.
  • 36" tailgate height.
  • 96" body width.
  • 10-gauge steel sides with fully boxed dirt-shedding top rail.
  • Sides include three vertcial braces with radius corner bends.
  • 8-gauge grade 50 steel floor.
  • 10-gauge steel front panel/fully boxed top rail.
  • 10-gauge fully boxed perimeter tailgate - 6-panel design.
  • 4" I-beam crossmembers on 12" centers.
  • 7" structural longitudinals.
  • Recessed stop/tail/turn lights in rear posts.
  • All appearance corners have radius bends.
  • 1/2 cab protector is standard.

Easterner 8'4

Easterner 8'4" Steel Dump Body (2-3 Yard)

The Easterner dump body is the BIG name in small dumps. A body designed for New England conditions. THIS UNIT ONLY FITS: 2007 and older GM 3500s with a 60" CA.

  • 13" side height.
  • 19" tailgate height.
  • 88" or 94" overall width.
  • 10-gauge Double Panel steel sides.
  • 10-gauge steel floor.
  • Fully boxed top rail.
  • 3" structural channel cross members on 12" centers.
  • 5" structural channel long sills.
  • Snap Latch tailgate hardware.
  • Sloped six panel tailgate.
  • Vertical side braces.
  • 24” cab protector with screen window.
  • Direct lift hoist – Electric, PTO or clutch pump operated
  • Twin body props on the direct lift hoist.

Easterner 9' Steel Dump Body (3-4 Yard)

Easterner 9' Steel Dump Body (3-4 Yard)

The Easterner dump body is the BIG name in small dumps. A body designed for New England conditions, It is available for the Ford 550, the Dodge 5500 and the GM 4500/5500 series with a 60" CA.

  • 19" side height.
  • 24" tailgate height.
  • 94" overall width.
  • 10-gauge Double Panel steel sides.
  • 10-gauge steel floor.
  • Fully boxed top rail.
  • 3" structural channel cross members on 12" centers.
  • 5" structural channel long sills.
  • Snap Latch tailgate hardware.
  • Sloped six panel tailgate.
  • Vertical side braces.
  • 24” cab protector with screen window.
  • Scissor hoist – Electric, PTO or clutch pump operated

Easterner 9'4

Easterner 9'4" Steel Dump Body (2-3 Yard)

The Easterner dump body is the BIG name in small dumps. A body designed for New England conditions, It is available for the Ford F-350/450/550's, GM 3500's and the Dodge 3500/4500/5500 series with a 60" CA.

  • 13" side height.
  • 19" tailgate height.
  • 94" overall width.
  • 10-gauge Double Panel steel sides.
  • 10-gauge steel floor.
  • Fully boxed top rail.
  • 3" structural channel cross members on 12" centers.
  • 5" structural channel long sills.
  • Snap Latch tailgate hardware.
  • Sloped six panel tailgate.
  • Vertical side braces.
  • 24” cab protector with screen window.
  • Direct lift hoist – Electric, PTO or clutch pump operated
  • Twin body props on the direct lift hoist.

Easterner Contractor Dump Body With Fold Down Sides

Easterner Contractor Dump Body With Fold Down Sides

The Easterner dump body is the BIG name in small dumps. A body designed for New England conditions, It is available in 10’, 12', 14', or 16' body lengths.

  • 13" side height.
  • 19" tailgate height.
  • 96" body width.
  • 10-gauge steel sides and ends.
  • 10-gauge steel floor standard on 12' bodies.
  • Fully boxed dirt-shedding top rail.
  • 3" I-beam steel crossmembers on 12" centers.
  • 7" structural channel longitudinals.
  • Snap latch tailgate hardware.
  • Fully boxed perimeter tailgate with two vertical braces.
  • Tailgate sloped 10-degrees inward.
  • Recessed stop/tail/turn lights in rear posts.
  • 6" vertical side braces.
  • Independently operated double door sides with removable center post.
  • Single pin release system to quickly release lever.
  • 24” cab protector standard on 12' bodies; 1/2 cab protector standard on 14' & 16' bodies.

Easterner Double Drop Side Dump Body (2-3 Yard)

Easterner Double Drop Side Dump Body (2-3 Yard)

The Easterner dump body is the BIG name in small dumps. A body designed for New England conditions, It is available for either the 8’4” unit for the GM 3500 with a 60” CA and the 9’4” unit for the Ford F-350/450/550's and the Dodge 3500/4500/5500 series with a 60" CA

  • 13" side height.
  • 19" tailgate height.
  • 88" overall body width on the 8’4” unit or 94” overall body width on the 9’4” unit.
  • 10-gauge Double Panel steel sides.
  • Hide away double drop side
  • 10-gauge steel floor.
  • Fully boxed top rail.
  • 3" structural channel cross members on 12" centers.
  • 5" structural channel long sills.
  • Snap Latch tailgate hardware.
  • Sloped six panel tailgate.
  • Vertical side braces.
  • 24” cab protector with screen window.
  • Direct lift hoist – Electric, PTO or clutch pump operated
  • Twin body props on the direct lift hoist.

Easterner Stainless Steel Hybrid Dump Body (2-3 Yard)

Easterner Stainless Steel Hybrid Dump Body (2-3 Yard)

The Easterner dump body is the BIG name in small dumps. A body designed for New England conditions, The 9'4" hybrid stainless steel unit is available for the GM 3500, the Ford F-350/450/550's and the Dodge 3500/4500/5500 series with a 60".

  • 13" side height.
  • 19" tailgate height.
  • 94” overall body width on the 9’4” unit.
  • 11-gauge Double Panel 304 stainless steel sides.
  • 11-gauge 304 stainless steel floor.
  • Fully boxed top rail.
  • 3" structural steel channel cross members on 12" centers.
  • 5" structural steel channel long sills.
  • Snap Latch tailgate hardware.
  • Sloped six panel 304 stainless steel tailgate.
  • Vertical side braces.
  • 24” 304 stainless steel cab protector with screen window.
  • Direct lift hoist – Electric, PTO or clutch pump operated
  • Twin body props on the direct lift hoist.

KBS Dump bodies

KBS Dump bodies

The KBS Series Body combines a clean look with rugged durability. Ideal for heavy contract work or municipal use. Everest offers 'Quality by Design'

  • Cross member design.
  • 4” I-beam cross members on 12” centers.
  • One piece floor formed from 3/16” or 3/8” steel plate.
  • Double pleated reinforced bulkhead with various cabguard lengths.
  • Heavy duty double acting tailgate with heavy duty hardware.
  • 3/16” steel plate sides and tailgate.
  • Standard six panel tailgate bracing.
  • Heavy duty 1-1/2” steel upper tailgate hinges.

Smith Custom Stainless Steel Dump Body

Smith Custom Stainless Steel Dump Body

This body is designed for both light and medium duty vehicles

  • Available lengths: 8', 9', 10', or 11'.
  • Available many side and tailgate heights.
  • Available cab protectors: 18", 24", 30", or 36".
  • All T304 stainless steel construction.
  • 10-gauge floor and inner side walls [3/16" or ผ” available as an option].
  • Fully boxed top rail.
  • Boxed front and rear corner posts.
  • Boxed side stiffeners.
  • Double acting tailgate with either standard or drop-pin hardware.
  • 3" formed cross members.
  • 5" formed long sills.
